BTI 4.3 multi-integration touch screen display

No review yet. Write Review
Regular price
Regular price
Sale price

Vendor : BTI

Hurry! Only
units left in stock!

Sorry! Our BTI 4.3 multi-integration touch screen display is currently sold out.

Want to be notified when it becomes available again? Simply register your interest and we'll send you a message when it does.

Introducing the second generation BTI touchscreen display. We have received many requests for a larger screen for the MKIV Supra stock clock location as well as a larger windshield mount unit and this is our solution. The new larger display with an anti-glare coating now has a boost in processing power and memory allowing for all compatible integrations to be loaded into this single device. Just select your compatible ECU and baud rate. As with the previous generation, there are two 0-5 volt analog outputs and CAN transmit functionality as well. This means that this gauge is capable of adjusting boost settings, traction settings, and much more. Of course there is the standard shift light that may be programmable by gear and next to that is an auto dimming sensor that keeps the display at the correct brightness.

Mounting options:

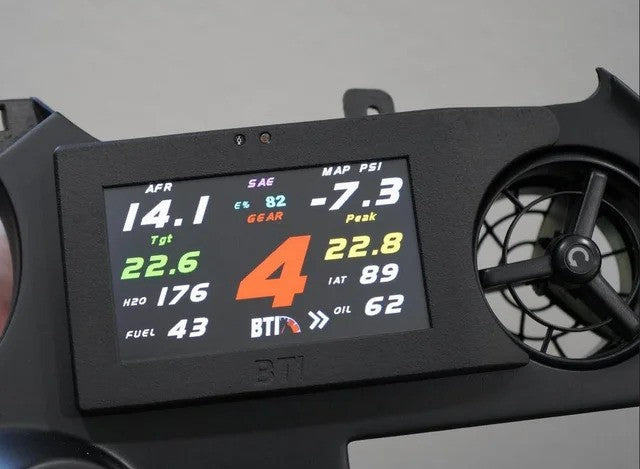

The Supra displays include a mount that uses the factory screws and mounting location that the factory digital clock uses. The Universal mount has 3 threaded mounting points and includes a universal mounting bracket. The HD windshield mount model includes a heavy duty suction mount.

TPMS: This display is capable of reading TPMS over CAN and is compatible with our own TPMS-CAN system. Our TPMS-CAN system is capable of either 500kb/s or 1MB/s baud rates which will work with any aftermarket ECU that we support. We also currently support data from the Haltech TMS4 TPMS CAN system which is only capable of a 1MB/s baud rate.

Link: BTI TPMS systems

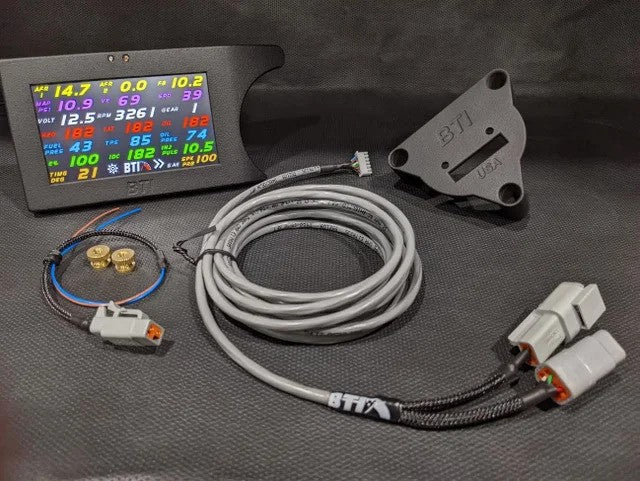

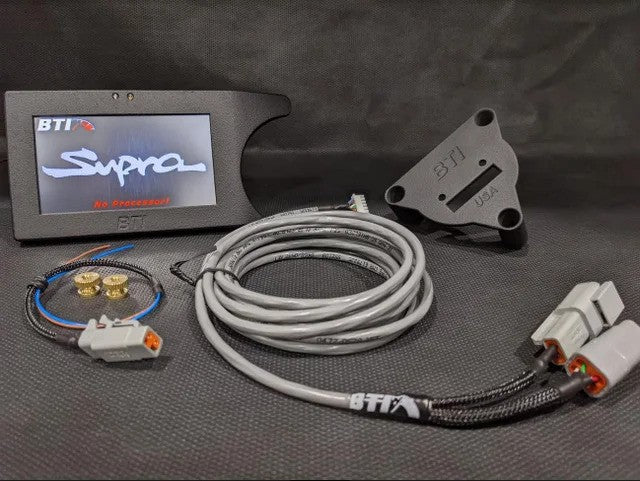

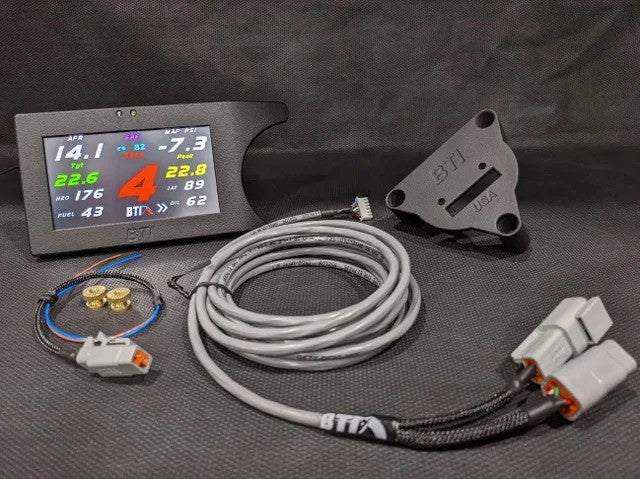

You will need to select your ECU wiring harness option when ordering.

**MKIV Supra models are only compatible with Series 1 MKIV Supra dashes** ( not compatible with the Analog clock mounting location).
